AppController and Event Handling

In the absence of any other object in our ContactList application, we’d send a Contact to the ContactDetailPresenter when a Contact was selected in the ContactListPresenter.

And if the user updates Joe’s first name to Joseph, we’d send a message back to the Contact List so that it displays Joseph instead of Joe.

And then Product Management might come along and say that the Browser Window title should reflect the selected Contact. In response, we’d add a BrowserWindowPresenter and wire things up to get that displaying what it should.

Everything in theory will work, but we are getting to a place where the UI components’ presenters are intertwined and dependent upon each other. ContactDetailPresenter needs a handle to ContactListPresenter and BrowserWindowPresenter in order to send them contact-updated notifications. ContactListPresenter needs a handle to ContactDetailPresenter and BrowserWindowPresenter in order to send them contact-selected notifications. It’s not too hard to imagine that, as a page gets more complex, the number of dependencies among the Presenters will grow. This means a couple things:

· This makes testing challenging. In order to test the ContactListPresenter behavior in isolation, we would need to mock the BrowserWindowPresenter and the ContactDetailPresenter.

· If we like the Contact Detail UI Component and decide it should be re-used on a different page, we’d have to do significant refactoring to decouple the Contact Detail UI Component from the Contact List UI Component and the Browser Window UI Component.

To address these dependency issues, we’ll introduce an AppController to coordinate messages between UI Components and we’ll build an Event Bus in to each presenter so that the AppController can register interest in the presenter events and can react accordingly.

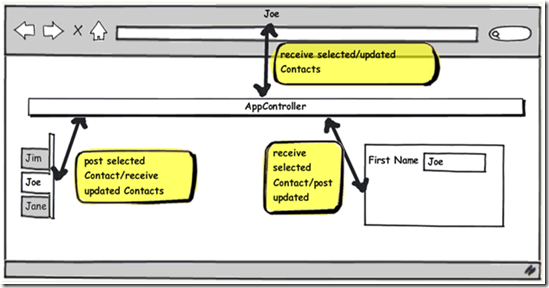

With the AppController in place, the diagram now looks like so:

The event bus in each Presenter is how the AppController registers interest in event. Then when one presenter raises events, the AppController is notified so that it can instruct other presenter what to do. We’ve now addressed the two dependency issues raised above. We can test any presenter in isolation and we can use the Contact Details UI component in any page.

GWT Events: GWT has a built-in mechanism to do event-handling. GWT’s HandlerManager class can serve as an event bus. Presenters (or whoever) can register interest in particular events using the addHandler(EventHandler) method. After that, GwtEvents can be fired on to the HandlerManager using the fireEvent(Event) method, in which case the interested parties will be notified. GWT Events have 3 main components: a Type, an Event Definition, and an Event Handler. By use of Java generics, the Event Definition is tied to a particular Type and EventHandler. This ultimately prevents us from making mistakes like handling a particular event with the wrong event-handler.

We’ll now take a couple of the events discussed for the Contact Management application and see how the code would look using GWT. First, we’ll define the needed events, ContactUpdatedEvent and ContactSelectedEvent.

Given this, here are what the ContactUpdatedEvent and ContactSelectedEvent events could look like. The ContactUpdatedEvent will be constructed with a particular Contact and can dispatch to any ContactUpdatedEventHandler.

public class ContactUpdatedEvent extends
    GwtEvent{
	public Contact contact;
	public ContactUpdatedEvent(Contact contact){
		this.contact = contact;
	}
	public static final Type TYPE = new Type();
	public static interface ContactUpdatedEventHandler extends EventHandler{
		public void handleEvent(ContactUpdatedEvent contact);
	}
	@Override
	protected void dispatch(ContactUpdatedEventHandler handler) {
		handler.handleEvent(this);
	}
	@Override
	public Type getAssociatedType() {
		return TYPE;
	}
	public Contact getUpdatedContact(){
		return contact;
	}
}

Note:  GwtEvent is a class delivered in the core GWT library.  EventHandler and Type are interfaces delivered in the core GWT library.

And similarly, the ContactSelectedEvent will be constructed with a particular Contact and can dispatch to any ContactSelectedEventHandler.

public class ContactSelectedEvent extends
    GwtEvent{
	public Contact contact;
	public ContactUpdatedEvent(Contact contact){
		this.contact = contact;
	}
	public static final Type TYPE = new Type();
	public static interface ContactUpdatedEventHandler extends EventHandler{
		public void handleEvent(ContactUpdatedEvent contact);
	}
	@Override
	protected void dispatch(ContactUpdatedEventHandler handler) {
		handler.handleEvent(this);
	}
	@Override
	public Type getAssociatedType() {
		return TYPE;
	}
	public Contact getSelectedContact(){
			return contact;
	}
}

And that’s all we need to define events and event-handlers for use with each Presenter’s Event Bus. With that in place, we can now go in to our presenters and add code to post events on to the EventBus.

To accomplish this, the Contact Detail Presenter could now look like the code below. Notice it now has its own event bus and an onContactUpdated() event so the AppController can register interest in a ContactUpdatedEvent. And if the Contact is updated, it will post an event to the Event Bus telling it that a Contact was updated and the AppController will be notified and can react accordingly.

public class ContactDetailPresenter {
	private ContactDetailView view;
	private HandlerManager eventBus = new HandlerManager(null);
	public ContactDetailPresenter(ContactDetailView view){
		this.view = view;
	}

	public void setContact(final Contact contact){
		final HasChangeHandlers hasChangeHandlers = view.setFirstName(contact.getFirstName());
		hasChangeHandlers.addChangeHandler(new ChangeHandler() {

			public void onChange(ChangeEvent event) {
				eventBus.fireEvent(new ContactUpdatedEvent(contact));
			}
		});
	}

	public void onContactUpdated(ContactUpdatedEventHandler updatedEventHandler){
		eventBus.addHandler(ContactUpdatedEvent.TYPE, updatedEventHandler);
	}
}

With this in place, we can now imagine that the ContactList would take a similar approach to enable an AppController to handle a ContactSelectedEvent. Here’s some code from the App Controller that wires up the events:

	public void wireUpEvents(){
		contactList.onContactSelected(new ContactSelectedEventHandler() {

			public void handleEvent(ContactSelectedEvent contactSelectedEvent) {
			contactDetail.setContact(contactSelectedEvent.getSelectedContact());
			}
		});

		contactDetail.onContactUpdated(new ContactUpdatedEventHandler() {

			public void handleEvent(ContactUpdatedEvent contactUpdatedEvent) {
				contactList.updateContact(contactUpdatedEvent.getUpdatedContact());
			}
		});
	}

Here’s an approximate sequence showing the event-registration process:

And here’s an approximate sequence showing the event-handling:

Note on Application State: The examples in this post show event handlers being constructed with a Contact object. Depending upon the type of application being built, this may not be a good idea for all these event handlers in different Presenters to have a handle to the exact same object. It’s probably better to have application state managed in a single place and only let presenters have copies of this state. I’ll research application state some more and write a post on that when I have a pattern I’m comfortable with.

Note on changes to this post: This chapter is a version 2. I changed this chapter after reading this article http://code.google.com/webtoolkit/doc/latest/tutorial/mvp-architecture.html. In the first version, I had all UI Components listening on an application-wide event bus and there was no AppController. The ContactDetailPresenter listened for ContactSelectedEvents and would update itself when a ContactSelectedEvent was raised. This meant that the UI component was essentially built for pages that raised ContactSelectedEvents; after reading this article, I realized this coupling is unnecessary and potentially limiting. I like the AppController concept better so that it can be the thing handling events that any particular UI component raises. Now the AppController listens for the ContactSelectedEvent and simply tells the ContactDetailPresenter to present a particular Contact. The ContactDetailPresenter need to know nothing of ContactSelectedEvents. The one thing I did different from the article is that I have an event bus be wholly managed by a presenter; whereas, the article shows an application-wide event bus passed in to the presenters. I personally like the presenter-owned event bus better since the presenter simply support handlers (e.g. ContactListPresenter.onContactSelected()) only for those events it can fire. This, in my opinion, keeps the contract of the presenter more clear. This approach is similar to how Widgets deal with their events and tell its clients how, for example, they can register interest in an OnClick event.
